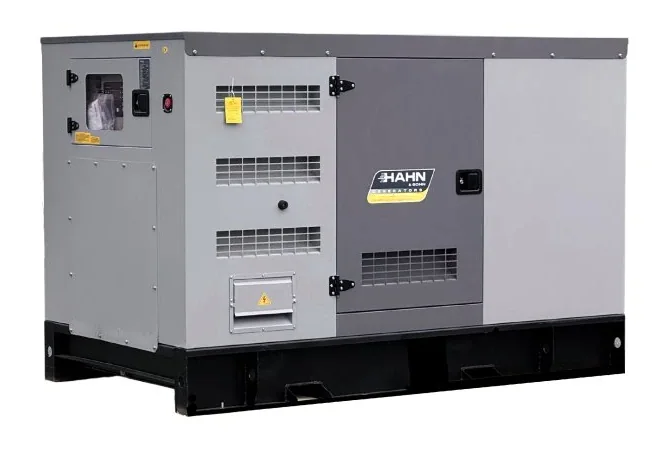

Hahn & Sohn Diesel Generator HDE40SS3-DR (Stage V) Euro 5
Hahn & Sohn Diesel Generator HDE40SS3-DR (Stage V) Euro 5
Rated Power: 42 kVA / 33 kW Output Voltage: 400/230 V Fuel Consumption at 50% Load: approx. 3.5 l/h Weight (net): 1050 kg
+49 163 02 44 737 · info@hahn-sohn.eu
Mon–Fri 8:00–16:00
The right model.
With expert advice.
Do you have questions about this product? We will respond within 24 hours. We will help you choose the necessary accessories.
+49 163 02 44 737info@hahn-sohn.euMon–Fri 8:00–16:00 · Professional service
Rated Power: 42 kVA / 33 kW
Output Voltage: 400/230 V
Fuel Consumption at 50% Load: approx. 3.5 l/h
Weight (net): 1050 kg
The diesel generator Hahn & Sohn HDE40SS3-DR (Stage 5) is a modern three-phase power source that meets the strict EU Stage V emission requirements. It is equipped with a RAYWIN 4F24TIG10 engine — a four-cylinder, turbocharged, liquid-cooled unit — ensuring efficient operation and long service life.
- The generator delivers a rated power of 33 kW (42 kVA) and a maximum power of 45 kW (55 kVA). Thanks to the automatic voltage regulator (AVR), it provides a stable electrical output, safe for powering sensitive equipment.
- The Ultra Silent soundproof housing ensures a low noise level of only 51 dB(A) @ 7 m. Clear monitoring and control of all operating parameters are provided by the advanced ComAp InteliLite 4 AMF25 control panel.
- This generator is suitable for industrial operations, construction sites, commercial buildings, and telecommunication applications where high reliability, performance, and compliance with Stage V emission standards are required.
Key Features
-
Rated power: 33 kW (42 kVA)
-
Maximum power: 45 kW (55 kVA)
-
Engine: RAYWIN 4F24TIG10, Stage 5 – 4-cylinder, turbocharged, liquid-cooled
-
Three-phase output: 400/230 V, 50 Hz
-
Automatic voltage regulator (AVR) – stable voltage for sensitive devices
-
Low noise level: 51 dB(A) @ 7 m – Ultra Silent design
-
Fuel consumption: approx. 3.5 l/h at 50% load
-
Fuel tank: 90 L – longer operation without refueling
-
Control unit: ComAp InteliLite 4 AMF25
-
Robust construction for industrial applications
Notice: Product image is for illustration purposes only. The actual product design may vary slightly.
Note: The unit is delivered ready for use – with oil and coolant filled, charged batteries, and tested. Before first startup, it is recommended to read the manual and check fluid levels and overall condition.
Additional parameters
Technical parameters
| Category | Industrial power generators |
| Warranty | 2 years |
| Weight | 1050 kg |
| Rated power (Prime Power) | 33 kW / 42 kVA |
| Maximum power (Standby Power) | 45 kW / 55 kVA |
| Output voltage | 400/230 V |
| Rated current | 47.8 A |
| Frequency | 50 Hz |
| Speed | 1500 rpm |

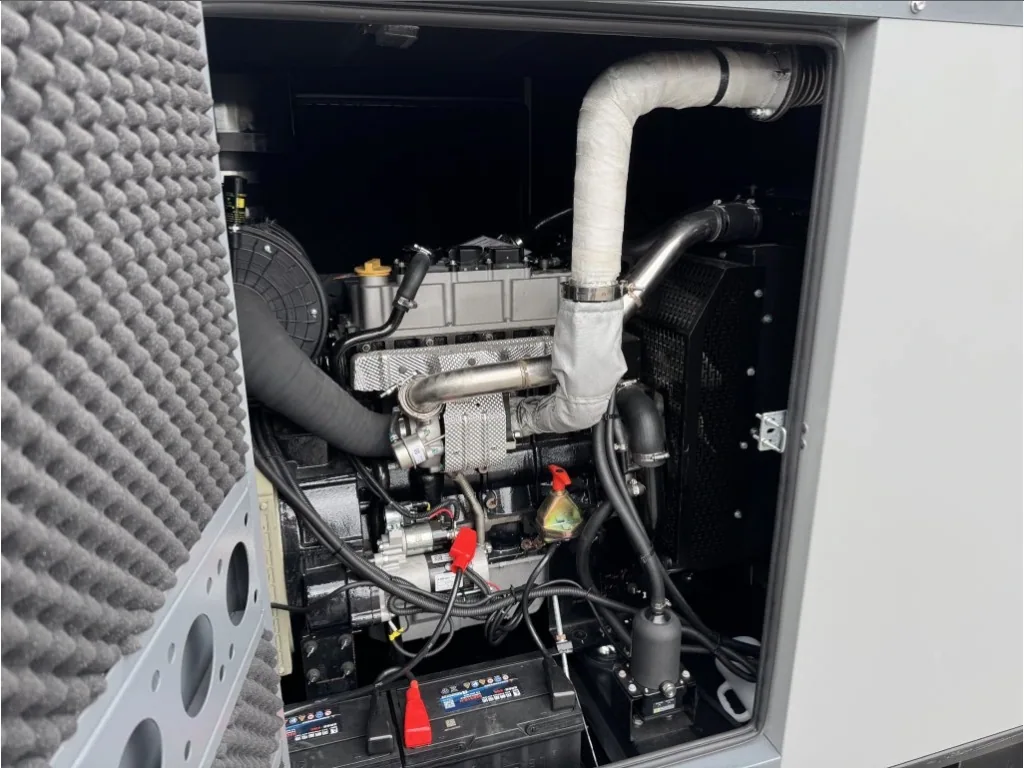

| Engine | RAYWIN 4F24TIG10 (Stage 5), 4-cylinder, 4-stroke, turbocharged, water-cooled, direct injection |
| Displacement | 2.289 l |
| Bore × stroke | 89 × 92 mm |
| Compression ratio | 17.5 |
| Nominal engine power | 36 kW |
| Oil capacity | 8 l |
| Coolant capacity | 5 l (engine) + 8 l (radiator) |
| Specific fuel consumption | 216 g/kWh (≈ 3.5 l/h at 50% load) |
| Fuel | diesel (0# summer, -10# winter, -35# arctic) |
| Starting | electric, 12 V (3.5 kW starter) |
| Alternator | XINGNUO XN184H-1, brushless, self-excited, AVR, insulation class H |
| Control unit | ComAp InteliLite 4 AMF25 |
| Noise level | 51 dB(A) @ 7 m |
| Fuel tank | 90 l |
| Dimensions (L × W × H) | 2010 × 1260 × 1650 mm |
