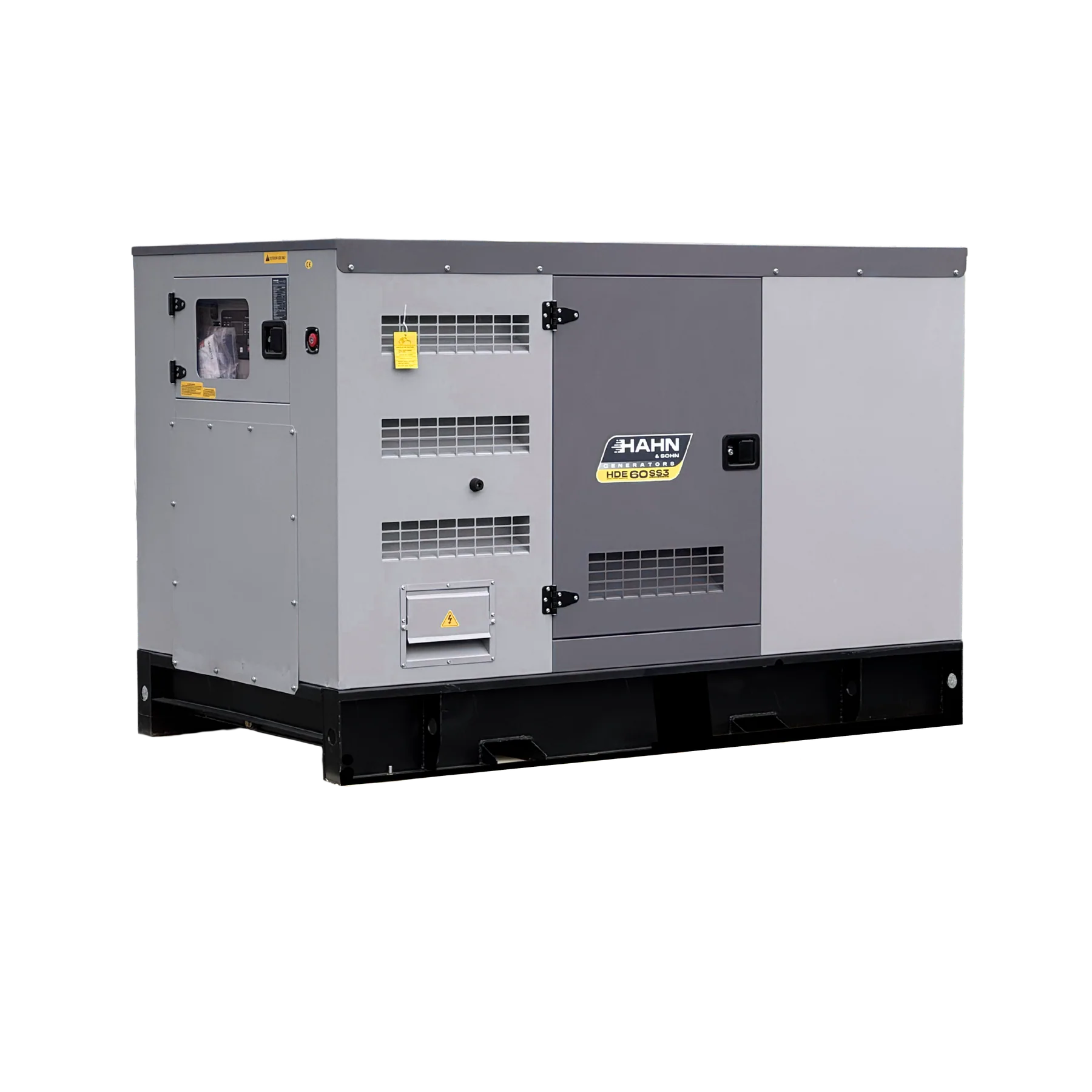

Hahn & Sohn Diesel Generator HDE60SS3-DR (Stage V) Euro 5
Hahn & Sohn Diesel Generator HDE60SS3-DR (Stage V) Euro 5
Rated Power: 65 kVA / 50 kW Output Voltage: 400/230 V Fuel Consumption at 50% Load: approx. 5.9 l/h Weight (net): 1100 kg
+49 163 02 44 737 · info@hahn-sohn.eu
Mon–Fri 8:00–16:00
The right model.
With expert advice.
Do you have questions about this product? We will respond within 24 hours. We will help you choose the necessary accessories.
+49 163 02 44 737info@hahn-sohn.euMon–Fri 8:00–16:00 · Professional service
Rated Power: 65 kVA / 50 kW
Output Voltage: 400/230 V
Fuel Consumption at 50% Load: approx. 5.9 l/h
Weight (net): 1100 kg

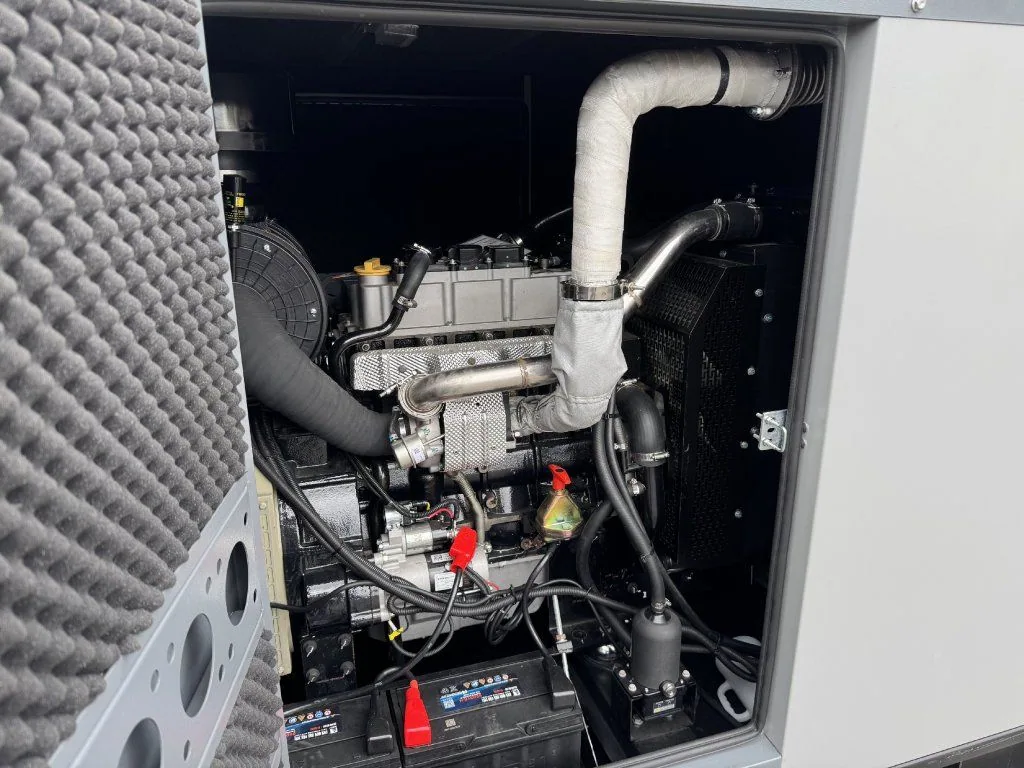

The diesel generator Hahn & Sohn HDE60SS3-DR (Stage 5) is a robust three-phase power source designed for demanding industrial and commercial applications. It is equipped with a powerful RAYWIN 4D36TIG01/5 engine — a four-cylinder, turbocharged, liquid-cooled unit — compliant with the strict EU Stage V emission standard.
- The generator delivers a rated power output of 50 kW (65 kVA) and a maximum output of 55 kW (70 kVA). The automatic voltage regulator (AVR) ensures a stable power supply, protecting connected equipment from voltage fluctuations and enabling reliable operation of sensitive devices.
- The Ultra Silent soundproof housing maintains a noise level of only 53 dB(A) at 7 m, an exceptionally low value for this performance class. The advanced ComAp InteliLite 4 AMF25 control panel provides full monitoring and control of all operating parameters.
- This model is ideal for industrial facilities, construction sites, logistics centers, telecommunication bases, and commercial buildings, where high reliability, performance, and compliance with environmental standards are required.
Key Features
-
Rated power: 50 kW (65 kVA)
-
Maximum power: 55 kW (70 kVA)
-
Engine: RAYWIN 4D36TIG01/5, Stage 5 – 4-cylinder, turbocharged, water-cooled
-
Three-phase output: 400/230 V, 50 Hz
-
Automatic voltage regulator (AVR) – stable voltage output, suitable for sensitive equipment
-
Low noise level: 53 dB(A) @ 7 m – Ultra Silent enclosure
-
Fuel consumption: approx. 5.9 l/h at 50% load
-
Fuel tank: 105 L – extended runtime without refueling
-
Control unit: ComAp InteliLite 4 AMF25
-
Robust construction for continuous operation
Notice: Product image is for illustration purposes only. The actual product design may vary slightly.
Note: The unit is delivered ready for use – with oil and coolant filled, charged batteries, and tested. Before first startup, it is recommended to read the manual and check fluid levels and overall condition.
Additional parameters
Technical parameters
| Category | Industrial power generators |
| Warranty | 2 years |
| Weight | 1100 kg |
| Rated power (Prime Power) | 50 kW / 65 kVA |
| Maximum power (Standby Power) | 55 kW / 70 kVA |
| Output voltage | 400/230 V |
| Rated current | 72.5 A |
| Frequency | 50 Hz |
| Speed | 1500 rpm |
| Engine | RAYWIN 4D36TIG01/5 (Stage 5), 4-cylinder, 4-stroke, turbocharged, water-cooled, direct injection |
| Displacement | 4.087 l |
| Bore × stroke | 105 × 118 mm |
| Compression ratio | 17.5 |
| Rated engine power | 60 kW |
| Oil capacity | 13 l |
| Coolant capacity | 9.4 l (engine) + 8 l (radiator) |
| Specific fuel consumption | 235 g/kWh (≈ 5.9 l/h at 50% load) |
| Fuel | diesel (0# summer, -10# winter, -35# arctic) |
| Starting | electric, 24 V (4.5 kW starter) |
| Alternator | XINGNUO FD2C-4, brushless, self-excited, AVR, insulation class H |
| Control unit | ComAp InteliLite 4 AMF25 |
| Noise level | 53 dB(A) @ 7 m |
| Fuel tank | 105 l |
| Dimensions (L × W × H) | 2510 × 1400 × 1750 mm |
