Powerful three-phase generator with AVR and vibration isolation. Power output up to 11 kW, output voltage 230V/400V, 3 sockets. A versatile helper for construction sites, events, or even for your home.

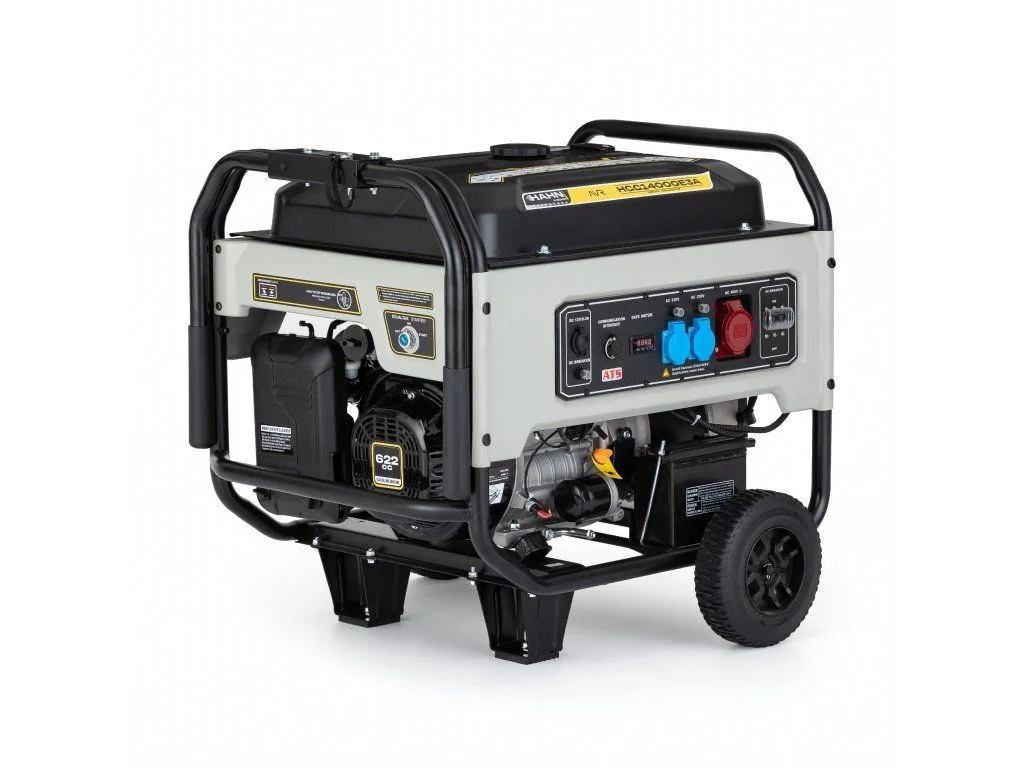

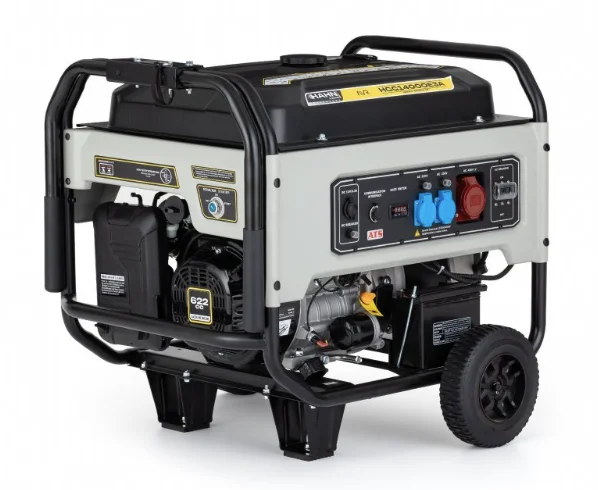

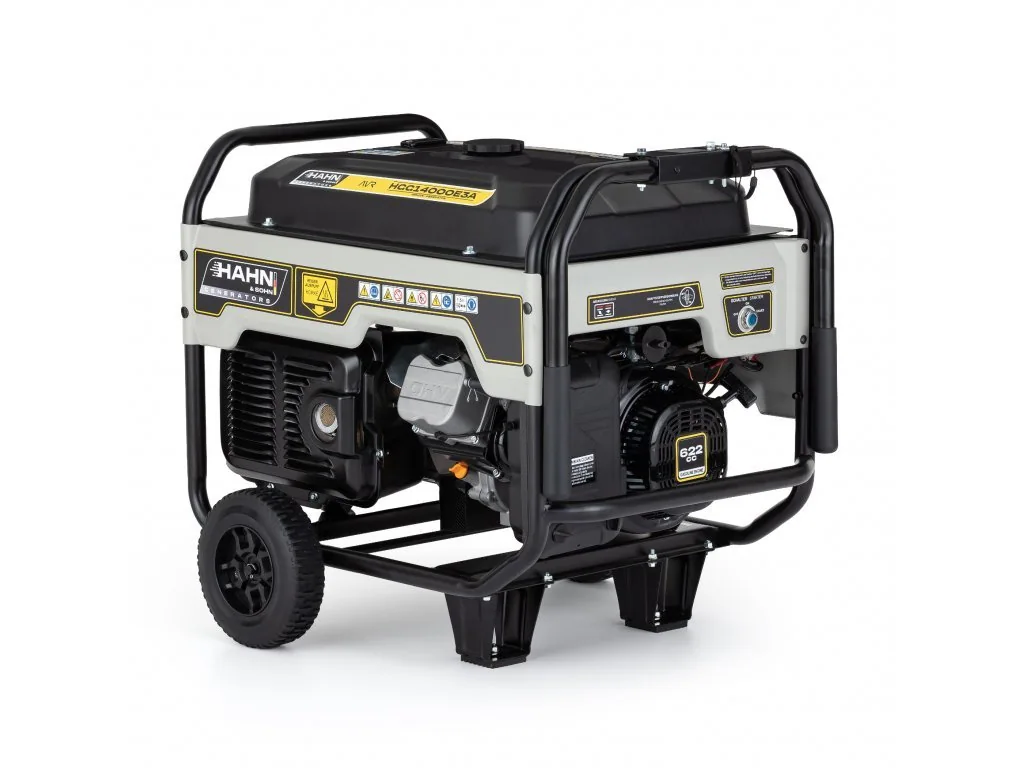

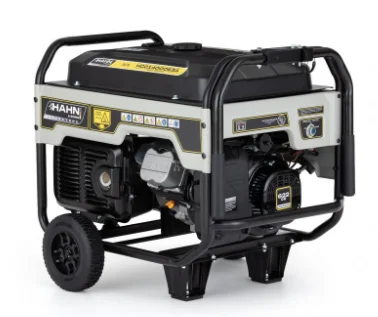

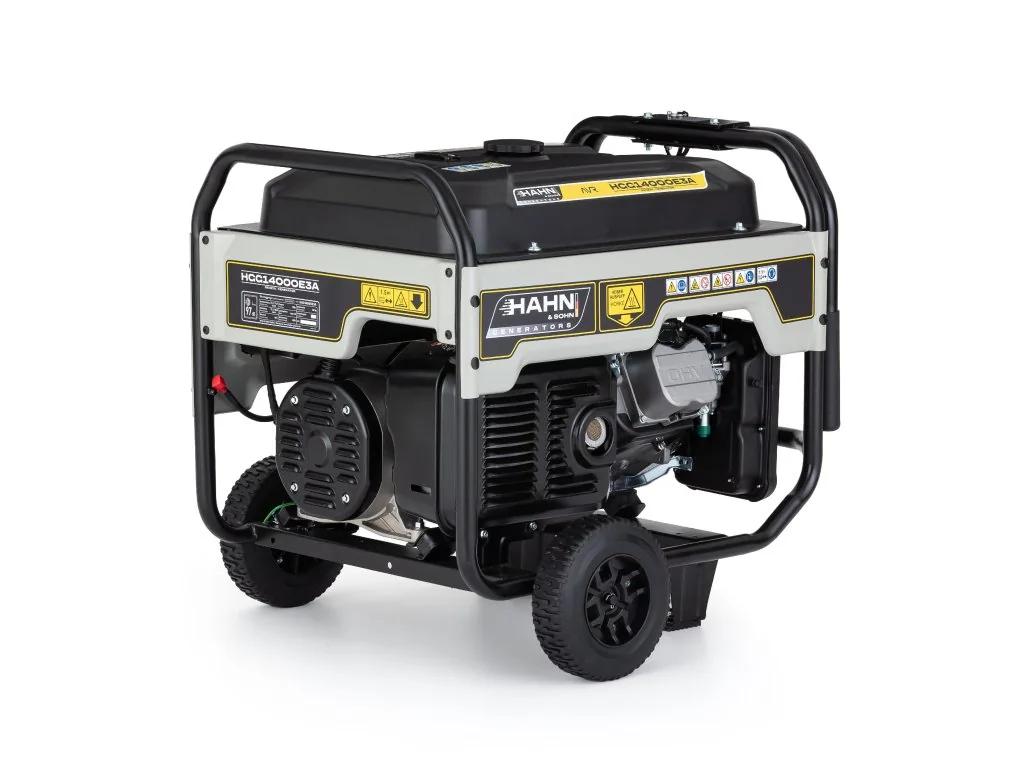

Hahn & Sohn Gasoline Generator HGG14000E3A
Hahn & Sohn HGG14000E3A is a modern gasoline generator that stands out for its reliability and smooth operation. Thanks to this, the Hahn & Sohn HGG14000E3A is a versatile assistant for construction sites, events, agriculture, or your own home. The generator is also suitable for emergency power supply.
Hahn & Sohn HGG14000E3A Description:
The air-cooled four-stroke engine has a large 48 L fuel tank, allowing long and uninterrupted operation of up to 10 hours. The generator can be started manually or electrically and provides both 230V and 400V outputs. The resulting output power of 11 kW (maximum power, 400V) and 10 kW (rated power, 400V) makes it a powerful companion.
Thanks to the automatic voltage regulator – AVR – voltage fluctuations are prevented, avoiding possible damage to connected devices. This allows you to safely connect sensitive equipment or appliances that are difficult to start.
- Electric starter
- Reliable gasoline engine ensures long-term, trouble-free operation

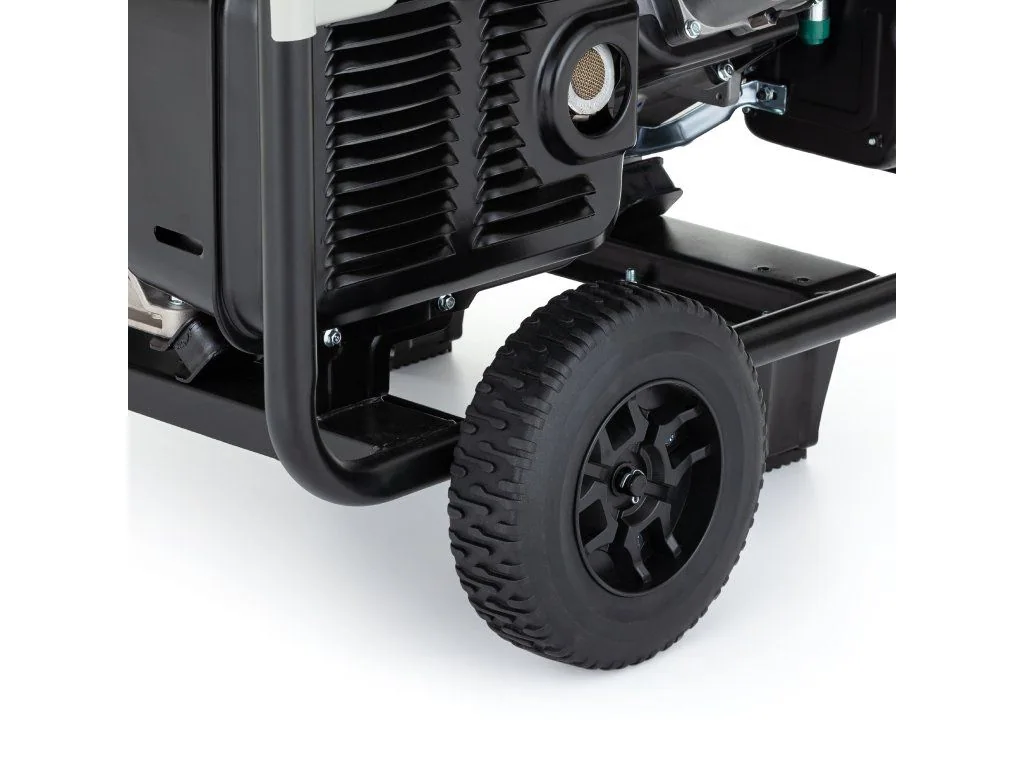

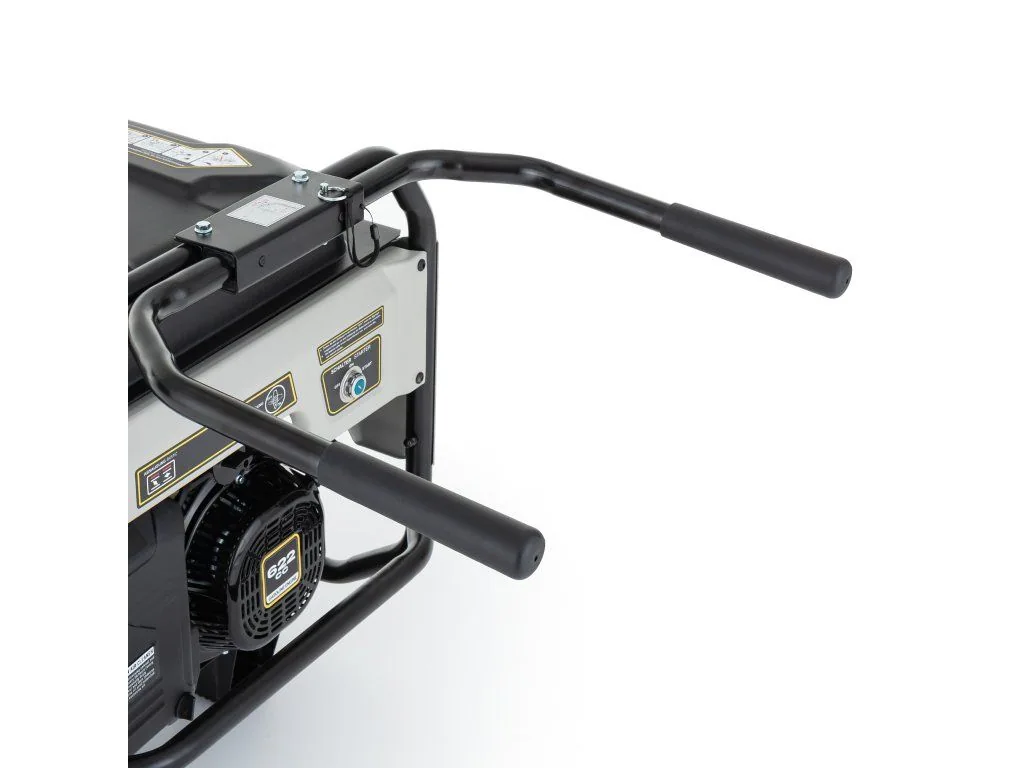

- Strong and compact frame protects the generator from damage and makes it easy to transport
- Anti-vibration pads protecting the engine and generator
- AVR – Automatic Voltage Regulator

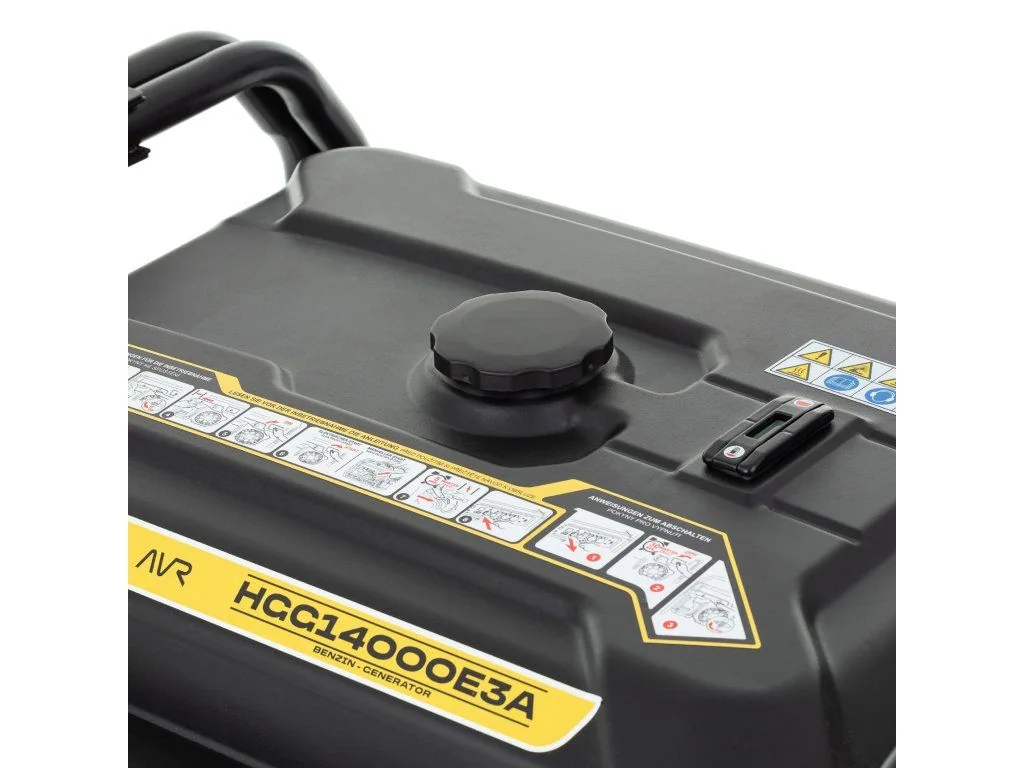

- Large fuel tank

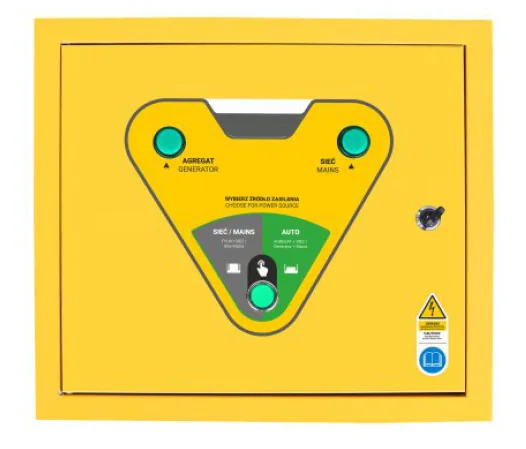

ATS output - Hahn & Sohn ATS Switch 100A Gasoline
ATS Unit (Automatic Transfer Switch) automatically starts the generator and transfers the load to it when the main power source is disconnected, and automatically stops the generator when the central power supply is restored.ATS switch is not included in the package and must be purchased separately!
Additional parameters
Technical parameters
| Category | Gasoline power generators |
| Warranty | 5 years |
| Weight | 143 kg |
| EAN | 8594210230316 |
| Fuel tank capacity of the generator | 48 l |
| Maximum power output of the 3F generator | 11 kW |
| Maximum power output of the generator | 3,6 kW |
| Nominal power of the 3F power generator | 10 kW |
| Nominal power of the generator | 3,3 kW |
| Starter | Manual/electric |
| Voltage | 230/400 V |
| Rated current (400V) | 18 A |
| Frequency | 50 Hz |
| Noise level | 97 dB |

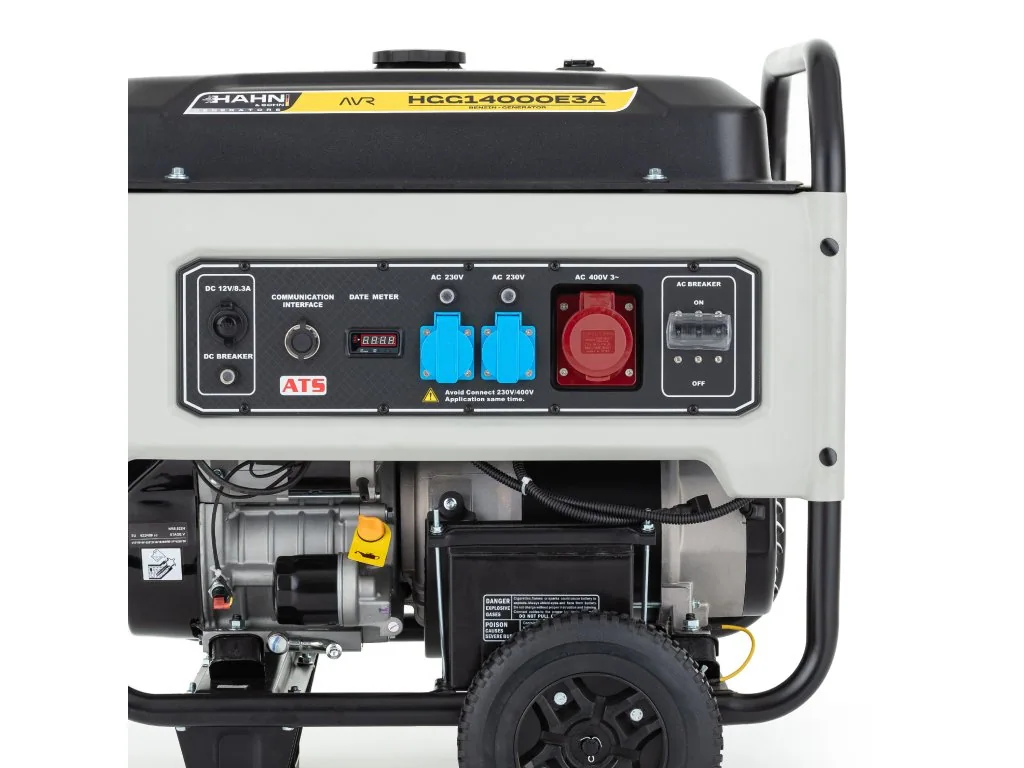

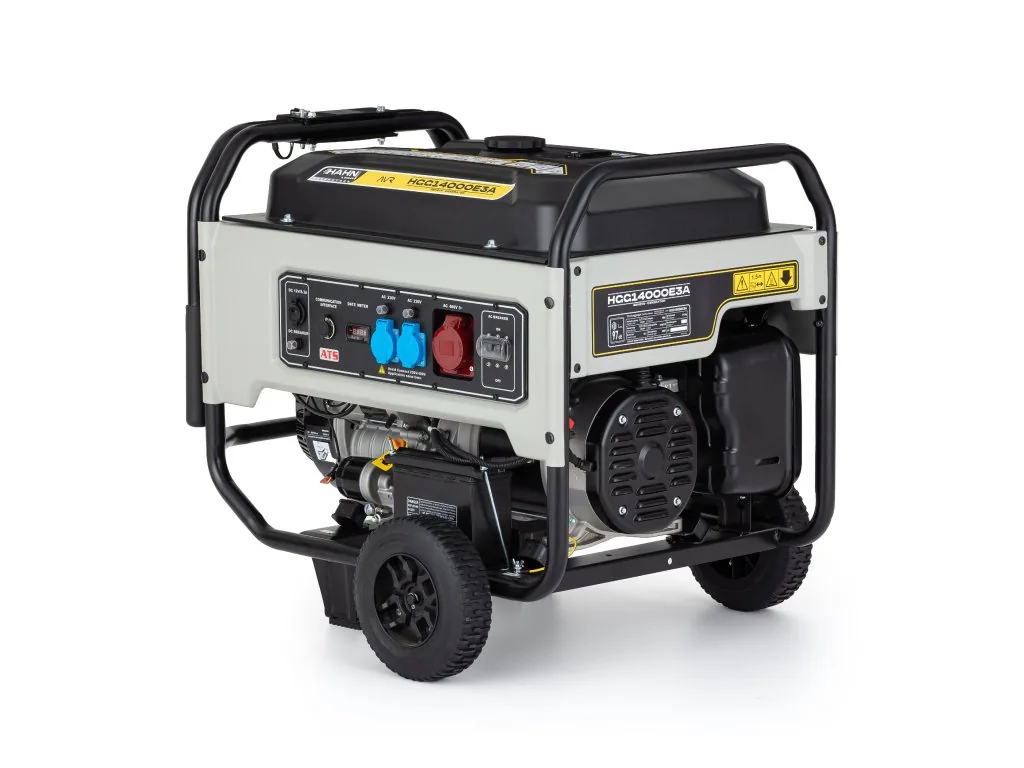

| Sockets | 2 x 230 V (16A), 1 x 400 V (16A) |
| Voltage regulation | AVR |

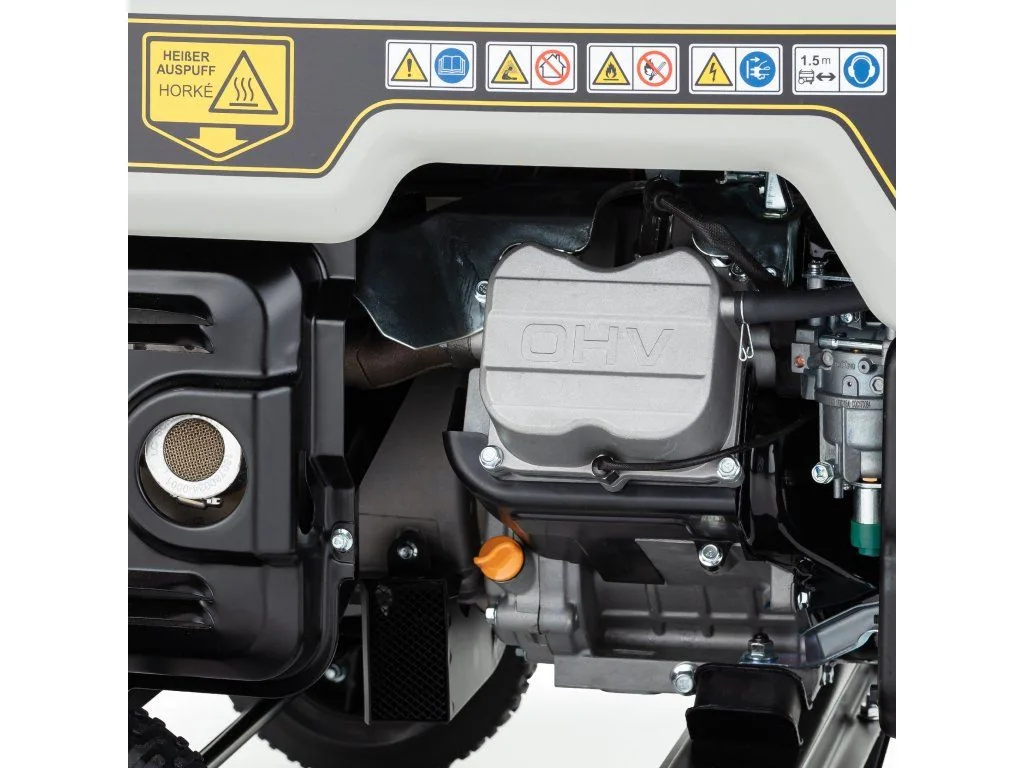

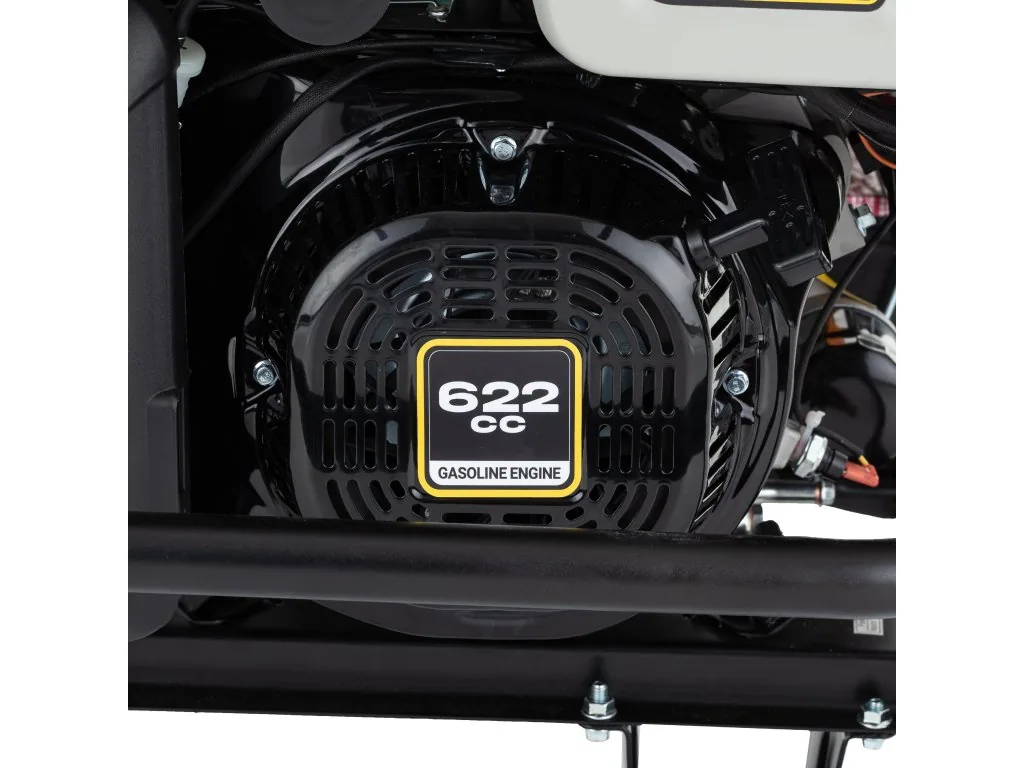

| Engine type | spark ignition, 4-stroke |
| Displacement, cm³ | 622 |
| Oil tank capacity, l | 1,6 |
| Consumption at 50% load, l/h | 3,4 |
| Operating time at 50% load, h | 14 |
| Dimensions, mm | 800x620x650 |
| Engine power | 20 HP / 13.3 kW at 3600 rpm |
| Max. speed | 3600 rpm |
| Rated speed | 3000 rpm |
| Engine model | PG622 |
| Battery weight | 4 kg |
